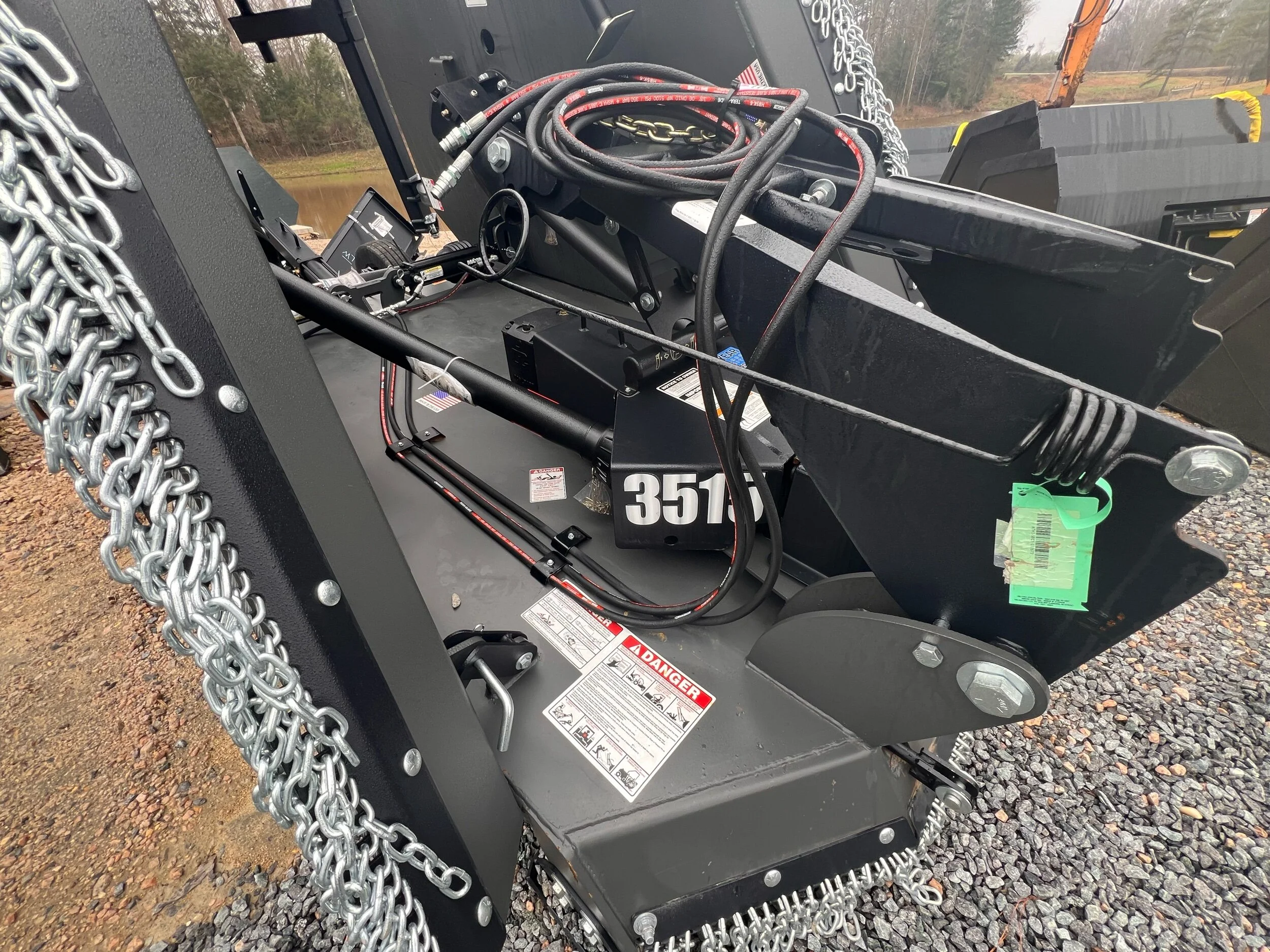

2024 Ironcraft 3515 Batwing Mower Cutter
2024 Ironcraft 3515 Batwing Mower Cutter
Located in richburg sc 29729
Blue Best Equipment Sales
Brand New 15' CUTTER WITH 6-26" LAMINATED TIRES - GRAY
Product Family 3515 Series
Product 3515
Description 15' Heavy Duty Flex Wing Rotary Cutter
RPM 540 or 1000
HP Required 60 minimum PTO
Working Width 180"
Overall Width 188"
Transport Width 90"
Tongue Weight 1900 lbs
Weight (lbs) 5600 lbs w/ 6- 26" laminated tires
Cutting Height 2" to 15"
Cutting Capacity 3-1/2"
Deck Thickness 10 GA
Side Bands 1/4" x 13-1/2"
Suspension 2 Heavy Duty Springs Positioned on the center tailwheel axle
Skid Shoes Replaceable
PTO Drive Shaft ASAE CAT 6
Wing Drive PTO ASAE CAT 4
Driveline Protection Slip Clutch
Blade Holder Round Pan
Gearbox Rating 235 HP
Outboard Gearbox Rating 190 HP
Wing Flex 22 Degrees Down to 100 Degrees Up
Blades 1/2" x 4" Uplift
Blade Overlap 6"
Wheel Type 20" or 26" Laminated, 26" Foam Filled, or 29" Pneumatic
Hitch Type Swivel Pivot Self Leveling
Gearbox Warranty 5 year limited
Deck Rings Standard
Safety Tow Chain Standard
Guarding Options Single Row Chains Standard
FPM 17135
